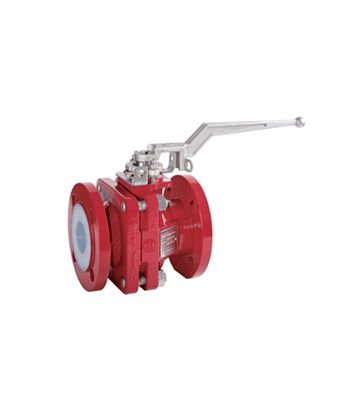

KN/KNA - HEAVY DUTY BALL VALVE

Design：ISO/DIN

Nominal Pressure：16 bar

Lining：PFA

Housing Material：EN-JS 1049

Face-to-Face：DIN EN 558-1 and ISO 5752 series 1

Flanges to：ISO 7005-2, type B or flanges drilled to ASME B16.5 class 150, raised face

SCK - MECHANICALLY SEALED PUMPS

Design：Long life grease or oil bath lubrication

Nominal Pressure ：PN16

Lining：PFA, PTFE, PE-UHMW, PFA conductive

Housing Material：EN-JS 1049 / ASTM A 395

Flanges to： ISO 7005-2, type B or flanges drilled to ASME B16.5 class 150, raised face

Temperature Range：-60 °C to +180 °C (-80 °F to +360 °F)

BVA- STANDARD DUTY BALL VALVE (ASME)

Design：ASME

Nominal Pressure：Class 150

Lining：PFA

Housing Material： EN-JS 1049

Face-to-Face：ASME B16.10, Class 150 column 19

Flanges to：ASME B16.5, class 150, raised face

Flushing System for MS

Standard：API 682

Flushing Type：Plan32, Plan52, Plan53, Plan54

Temperature Range: -30 º C ~40 º C

Material: 304SS, 316SS, 316L (only for pipe)

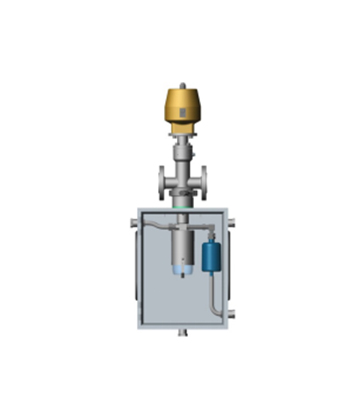

In-line Sampling System

Seal Type: Packing Seal, Bellows Seal

Material: Stainless Steel; Stainless Steel/PFA; Steel/PFA

Temperature Range: -30 º C ~150℃ for standard one； 200℃ special design

Operation: Manual, Pneumatic, Electric

AP Series Stainless Steel Pumps

Construction Materials: 316SS

High Working Pressure:up to 100 psi (6.9bar)

Viscosity: Over 1.5 cP

Maximum Temperature: 300º F (149º C)

Pumps - TM - Drum Mixer

Tube Diameter: 2 in (5.1 cm)

Available Lengths: 40 in (102 cm)

Temperature Range: -20º F (-29º C) to 200º F (93º C)

Maximum Viscosity: 1,000 cP

Tube Material: 316SS

Pumps - BT/HVDP - High Viscosity

Tube Diameter: 2 in (5.1 cm)

Discharge Size: 1-1/2 in (3.8 cm) or 2 in (5.1cm)

Hose Size: 1-1/2 in (3.8 cm) or 2 in (5.1cm)

Maximum Viscosity: 20,000 cP

Tube Material: 316SS

Pumps - TB - Mid Performance

Tube Diameter: 1.66 in (4.2 cm) or 1-1/2 in (3.8 cm)

Discharge Size: 1 in (2.54 cm)

Hose Size: 1 in (2.54 cm)

Maximum Viscosity: 200 cP

Tube Material: 316SS, PP
