Maag system can hold many tough process like high temperature, low inlet, high viscosity or applications involving corrosion. Thanks to the extensive range of components and materials of construction to choose from, maag gear pumps can be configured to suit customers' specific requirements and are therefore far superior to standard pumps in terms of performance and reliability.
Viscosity: 0.3 to 4,000,000 mPas
Temperature Range： -30 to 320°C
Suction Pressure:Vacuum up to 16 bar
Discharge Pressure：Vacuum up to 200 bar
Flow Rate 2): 2.5 to 265 l/min
Housing Material: Stainless Steel
Viscosity Range: up to 10,000 cSt
Temperature:up to 250°C / 482°F
Differential Pressure:up to 16 bar / 232psi
Capacity Range:up to 90 m3/h / 396gpm
Casing Material:Cast Iron, Carbon Steel, Stainless steel
Flows：up to 375 GPM (85 m³/hr)
Heads：to 970 ft (295m)
Temperature Range：-40 to 500°F (-40 to 260°C)
Available Flanges150#/300# RF
Solids Range：Maximum of 5% w/w less than 100 microns
Housing Material：S-5, A-8, D-1, D-2
Viscosity 2): To 60 Pas
Temperature Range：To 350°C
Suction Pressure: Pumped media flow under vacuum or at an admission pressure to 10 bar
Discharge Pressure:To 120 bar
Housing Material: Stainless Steel
2) Higher viscosities upon request
Flows： up to 200 GPM (45 m³/hr)
Heads：to 165 ft (50m)
Temperature Range：-40 to 248°F (-40 to 120°C)
Available Flanges：150#/300# RF
Solids Range：Maximum of 5% w/w less than 150 microns
Housing Material：316 St St, Alloy 20, Alloy C

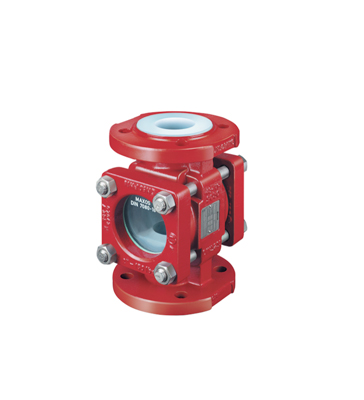

Design：ISO/DIN
Nominal Pressure：16 bar
Lining：PFA
Housing Material：EN-JS 1049
Face-to-Face：DIN EN 558-1 and ISO 5752 series 1
Flanges to：ISO 7005-2, type B or flanges drilled to ASME B16.5 class 150, raised face
